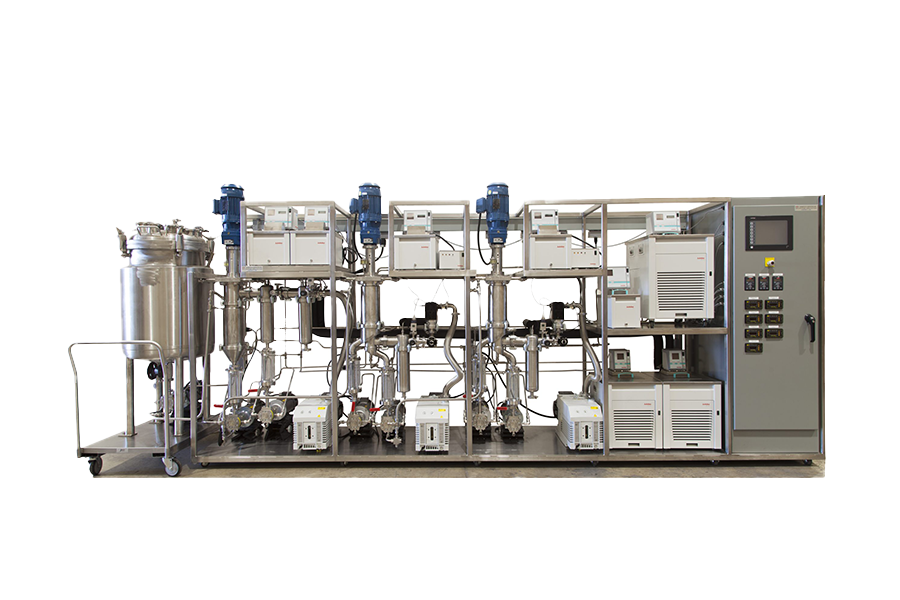

3-Stage KD-30 – Short Path Distillation Unit

Support Frame System

304ss Frame
Dimensions: 425″L 54″W 112″H
Feed System

200 Liter Hot Oil Heated Feed Tank
Gear Pump Feed Metering System
Hot Oil Traced Feed Line
Hot Oil Traced Transfer Lines
Evaporator

316 Stainless Steel
0.30 Sq. Meter Surface Area
Estimated Process Rate 20.00 liter/hour*
Circulators

Feed Circulator 12kW; 25-250°C
Three Evaporator Circulators 24kW; 25-250°C
Residue Circulator 12 kW; 25-250°
Two Condenser Circulators 6kW Heat/9.6kW Cool; 0-120°C
Cold Trap Circulator 0.6kW Cool; -75 to -30°C
Sample Collection

Hot Oil Heated Gear Pumps
Three 2L Cold Trap Receiving Flasks
Vacuum System

Three Backing Rotary Vane Pumps 65 M3/hour
Three Roots Blowers
Two Turbomolecular Pumps 350 L/sec​​​
Control System

UL 508 Rated Electrical Control Cabinet
PLC System Optional
Miscellaneous

Installation and Training Included
GMP Compliance Documentation Available
