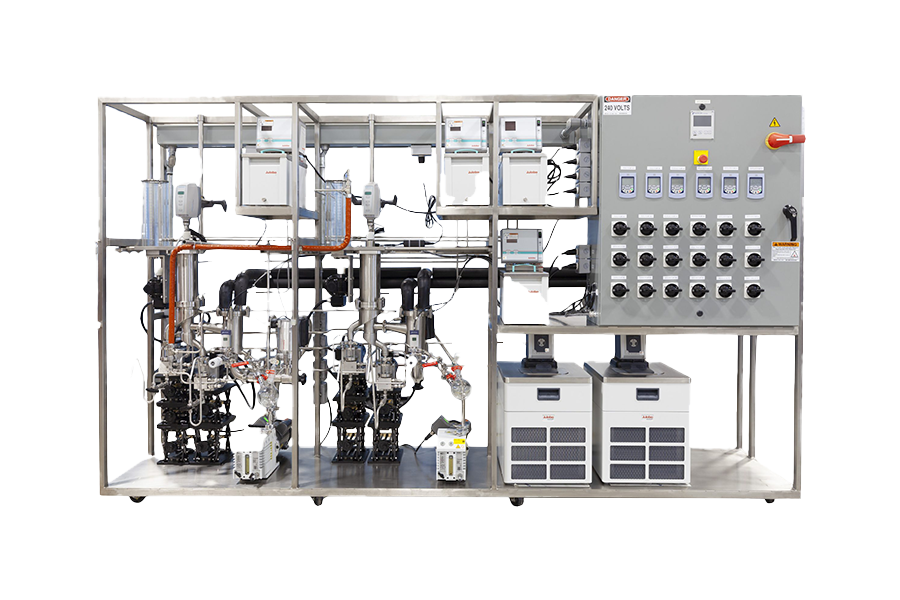

2-Stage KDT-6 – Short Path Distillation Unit

Support Frame System

304ss Frame
Dimensions: 129″L 28″W 76″H
​
Feed System

Two 2 Liter Hot Oil Heated Feed Tanks
Two Gear Pump Feed Metering Systems
Two Heated Evaporator Support Plates
Hot Oil Traced Transfer Line
​
Evaporator

316 Stainless Steel
0.060 Sq. Meter Surface Area
Estimated Feed Rate 3.0 Liter/hour*
​Circulators

Feed Circulator 2kw; 3kw; 0-250°c
Two Evaporator Circulators 3kw; 0-250°c
Residue Circulator 3kw; 0-250°c
Two Condenser Circulators 2kw Heat/500w Cool; -50-200°c
Cold Trap Circulator 2kw Heat/500w Cool; -50-200°c
​Sample Collection

6-Position Carousels
Hot Oil Heated Gear Pumps Optional
Vacuum System
Two Backing Rotary Vane Pumps 8 M3/hour
Two Turbomolecular Pumps 90 L/sec
Control System

UL 508 Rated Electrical Control Cabinet
PLC System Optional
​​Miscellaneous

Installation and Training Included
PSI Reviewed
GMP Compliance Documentation Available
