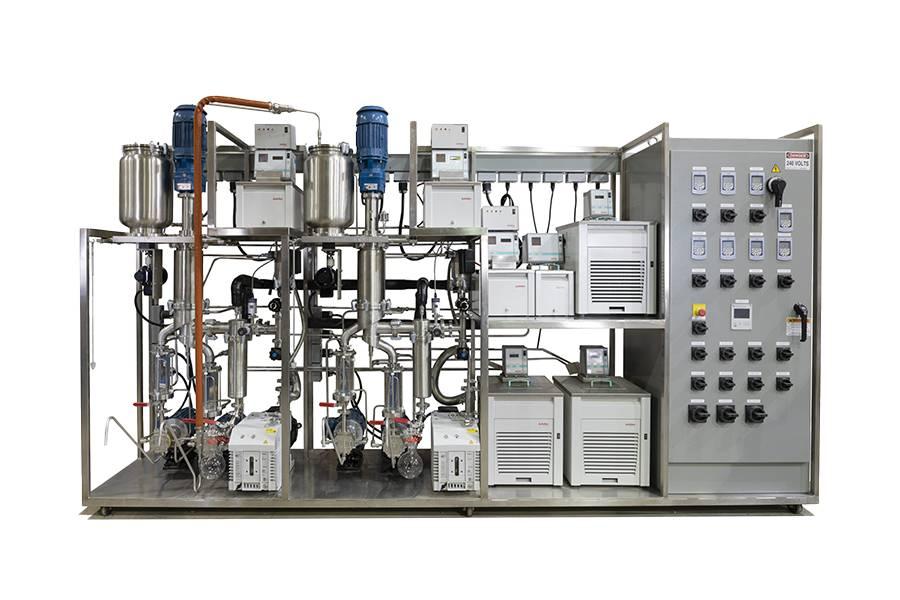

2-Stage KD-10 – Short Path Distillation Unit

Support Frame System

304ss Frame
Dimensions: 167″L 32″W 83″H
Feed System

Two 25 Liter Hot Oil Heated Feed Tanks
Two Gear Pump Feed Metering Systems
Two Heated Evaporator Support Plates
Hot Oil Traced Transfer Line
Evaporator

316 Stainless Steel
0.100 Sq. Meter Surface Area
Estimated Feed Rate 7 Liter/hour*
Circulators

Feed Circulator 3kw; 0-250°c
Two Evaporator Circulators 9kw; 20-300°c
Residue Circulator 3kw; 0-250°c
Two Condenser Circulators 2kw Heat/500w Cool; -50-200°c
Cold Trap Circulator 1kw Heat/1000w Cool; -51-200°c
Sample Collection

Hot Oil Heated Gear Pumps
Two 1L Cold Trap Receiving Flasks
Vacuum System

Two Backing Rotary Vane Pumps 40 M3/hour
Two Turbomolecular Pump 90 L/sec​
Control System

UL 508 Rated Electrical Control Cabinet
PLC System Optional
Miscellaneous

Installation and Training Included
GMP Compliance Documentation Available
