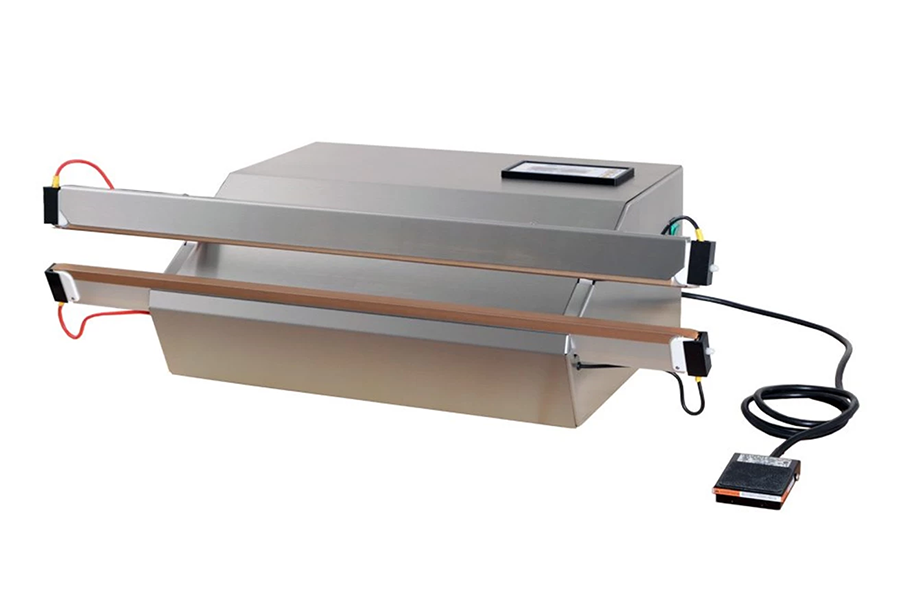

Validatable Power Sealer – Bulk Packaging

Part no: BULK-SEALER
  • Seal length: 520, 720 or 1020 mm
  • Seal width: 8 mm
  • Type of seal: Temperature-, time- and force controlled impulse seal
See the full description
Price on request Quoted per configuration and delivery country

We reply to quote requests within one working day.

  • Supplied through our manufacturer partnerships
  • Installation, training and calibration on request
Overview

What this PARALAB - EQUIP. INDUSTRIAIS unit gives you, taken from the manufacturer data we hold on file.

  • Seal length: 520, 720 or 1020 mm
  • Seal width: 8 mm
  • Type of seal: Temperature-, time- and force controlled impulse seal
  • Validation feature: Seal temperature, seal time and seal force (tolerance per 10N) can be controlled.
  • Operation: Digital control panel, 1 recipe
  • Covering: Stainless steel
  • Pedal operated: Yes
  • Type of film: PE (Polyethylene), Aluminum Laminated Bags
  • Required air pressure: > 6 Bar
  • Thickness of film: 2 x 200 micron
  • Classification: 2014/35/EU Low Voltage Directive; 2006/42/EC Machine Directive; 2014/30/EU EMC-Directive; RoHS 2 2011/65/EU, EN-ISO 11607-2; EN-ISO 12100, EN-ISO 4414, EN-ISO 14118, EN-IEC 60204-1
  • Your Power Sealer advantages:
  • Uncompromised product protection for both (long-term) storage and transportation
  • Monitored and controlled critical seal parameters (1 recipe)
  • Expert in-house (re)-calibration services and replacement parts available from stock
  • Data logging available
  • Increased ease of work and reduction of product waste
  • All our Validatable Power Sealer models are compatible with EN 868-5 and DIN 58953, part 7 norms. Our Val PSR / Val Vac PSR series also fully comply with the ISO 11607-2 and ISO/TS 16775
  • This makes your machine unique
  • We work together with you in providing the best quality packaging machines to help you grow your business
  • Richly equipped as standard
  • The robust stainless steel housing, solidly mounted sealing bars and Audion Touch Techware make this packaging solution the most advanced tech magic in its class, reaching the highest degree in validation and seal integrity.
  • Combine user-friendliness with ultimate control
  • Ultimate quality assurance of every seal, easily monitored and controlled on the HMI Touchscreen. Most precise and accurate control of all critical seal parameters, including alarm functions and data logging.
  • Wide selection of options for the best fit
  • From the wide experience in medical and pharma market we innovated an extensive list of options to customize your Power Sealer to the ultimate fit to your product and packaging environment.
  • Ergonomic packaging
  • Do you prefer a tabletop model or the Power Sealer being mounted on a mobile support? By mounting the Power Sealer on the sturdy stainless steel mechanical or motorized support you ensure yourself of an optimized packaging posture. Adjustable height of the sealer can be set in the sealer’s recipe (motorized support).
Delivery and support

Lead time depends on the manufacturer and the configuration, so we confirm it with your quote. Delivery, installation, operator training and calibration can all be included, and we will price them separately so you can see what each part costs.

Tell us the country you need it delivered to and we will quote transport and any documentation your institution requires.
