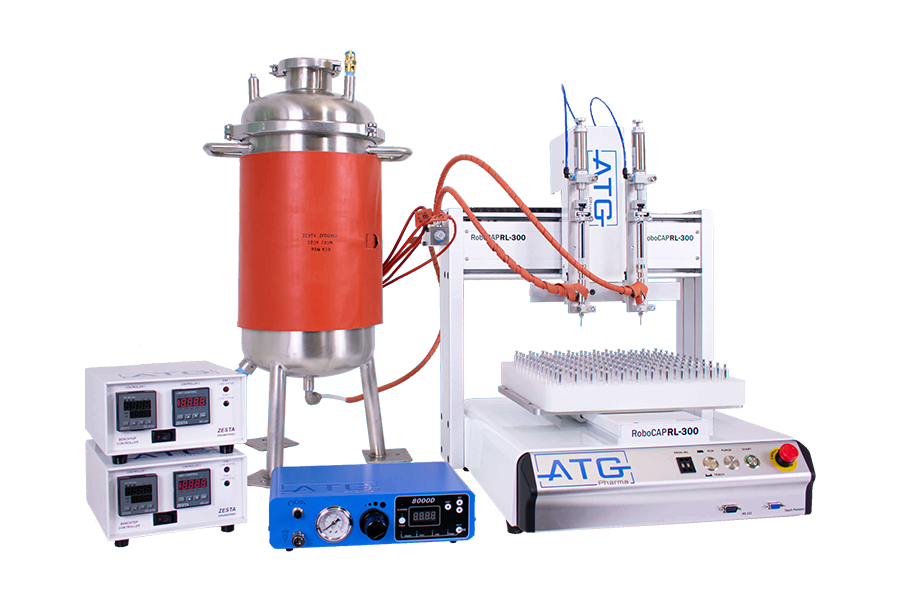

RoboCAP-RL Cartridge Filling Machine
RoboCAP-RL Cartridge Filling Machine
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Taxes included.
SKU:ROBOCAP-RL
Couldn't load pickup availability
Description
Description
RoboCAP-RL Cartridge Filling Machine Components
Dual Actuated VF+ Dispensing Nozzle
The VF+ dispensing nozzle takes control and consistency to the next level. Offering the ultimate solution for handling a variety of thicker oils with ease and less heat required (live resin/rosin, liquid diamond, RSO, etc.).
Draw and dispense 50% faster per shot while achieving an incredible 2.5% precision rating. With an ability to fill up to 2ml of product, fill exactly what you need, with minimal waste.
Pressure Vessel
The bottom-out pressure vessels are designed with back pressure to guarantee all product flows evenly and consistently through the tubing. This ensures every bit of product is not wasted and reduces the chance of air bubbles in your product.
The stainless-steel tanks range from 1L, 1g, 3g, 5g, and 10-gallon in size. All our pressure vessels are compatible with our mixers and heating systems for even heat distribution throughout the tank and cleaner filling process.
Pre-Loaded Trays
Experience the convenience of pre-assembled, plug-and-play trays, eliminating labour-intensive setup procedures.
With preloaded foam trays, you can get up to a 4X increase filling and capping output with a potential savings of between $0.20 to $0.60 cents per unit in reduced labor and overhead costs. Preloaded trays come in default 50 blocks and can be fully customized for blocks of 100, 25, or any size your automation system requires. Fuly compatible with ATG filling machines.
Cartridge Filling in Action
Designed to optimize low-volume product filling, the VF nozzle dispenses product with a +/- 2% filling accuracy. Set the exact product volume you want and start filling!
Specification RL-300
Fill Rate (Per Hour)*: 1,200 – 2,000
Dispensable Volume Range: 0.1ml- 5ml
Filling Capabilities: Cartridges, Capsules, Bottles, Tinctures, Balms, Creams
*Based on 0.5g cartridge
Dual Actuated VF+ Dispensing Nozzle
The VF+ dispensing nozzle takes control and consistency to the next level. Offering the ultimate solution for handling a variety of thicker oils with ease and less heat required (live resin/rosin, liquid diamond, RSO, etc.).
Draw and dispense 50% faster per shot while achieving an incredible 2.5% precision rating. With an ability to fill up to 2ml of product, fill exactly what you need, with minimal waste.
Pressure Vessel
The bottom-out pressure vessels are designed with back pressure to guarantee all product flows evenly and consistently through the tubing. This ensures every bit of product is not wasted and reduces the chance of air bubbles in your product.
The stainless-steel tanks range from 1L, 1g, 3g, 5g, and 10-gallon in size. All our pressure vessels are compatible with our mixers and heating systems for even heat distribution throughout the tank and cleaner filling process.
Pre-Loaded Trays
Experience the convenience of pre-assembled, plug-and-play trays, eliminating labour-intensive setup procedures.
With preloaded foam trays, you can get up to a 4X increase filling and capping output with a potential savings of between $0.20 to $0.60 cents per unit in reduced labor and overhead costs. Preloaded trays come in default 50 blocks and can be fully customized for blocks of 100, 25, or any size your automation system requires. Fuly compatible with ATG filling machines.
Cartridge Filling in Action
Designed to optimize low-volume product filling, the VF nozzle dispenses product with a +/- 2% filling accuracy. Set the exact product volume you want and start filling!
Specification RL-300
Fill Rate (Per Hour)*: 1,200 – 2,000
Dispensable Volume Range: 0.1ml- 5ml
Filling Capabilities: Cartridges, Capsules, Bottles, Tinctures, Balms, Creams
*Based on 0.5g cartridge
