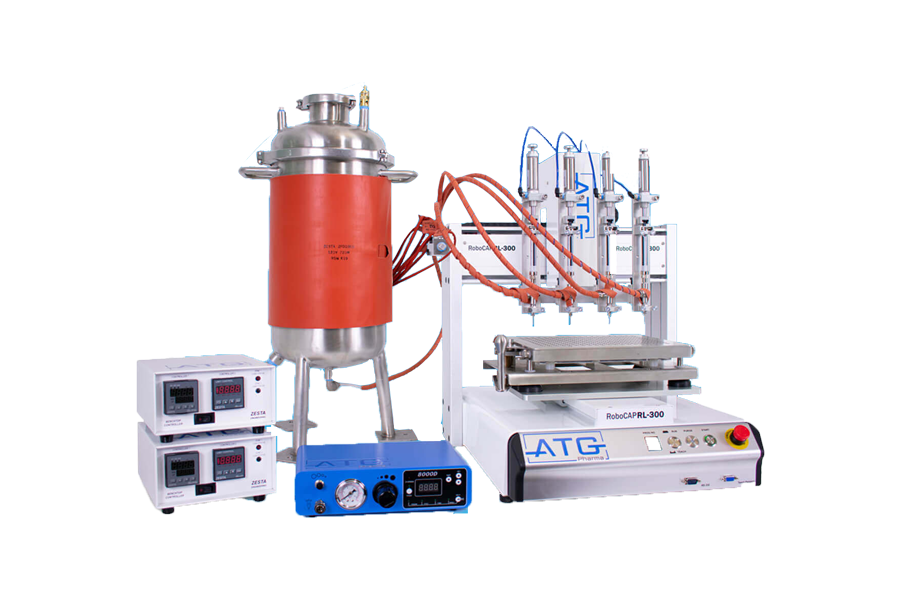

RoboCAP RL-300 – Capsule Filling Machine

Part no: RL-300
  • Volumetric Filling Nozzle
  • Designed to optimize low-volume product filling, the VF nozzle dispenses product with a +/- 2% filling accuracy. Set the exact product volume you want and start filling!
  • The product is pushed through the line from the pressure vessel and into the syringe through the VF dual valve where is it then dispensed out of the nozzle tip and into the cartridge or capsule.
See the full description
Price on request Quoted per configuration and delivery country

We reply to quote requests within one working day.

  • Supplied through our manufacturer partnerships
  • Installation, training and calibration on request
Overview

What this PARALAB - EQUIP. INDUSTRIAIS unit gives you, taken from the manufacturer data we hold on file.

  • Volumetric Filling Nozzle
  • Designed to optimize low-volume product filling, the VF nozzle dispenses product with a +/- 2% filling accuracy. Set the exact product volume you want and start filling!
  • The product is pushed through the line from the pressure vessel and into the syringe through the VF dual valve where is it then dispensed out of the nozzle tip and into the cartridge or capsule.
  • Pressure Vessel
  • The bottom-out pressure vessels are designed with back pressure to guarantee all product flows evenly and consistently through the tubing. This ensures every bit of product is not wasted and reduces the chance of air bubbles in your product.
  • The stainless-steel tanks range from 1L, 1g, 3g, 5g, and 10-gallon in size. All our pressure vessels are compatible with our mixers and heating systems for even heat distribution throughout the tank and cleaner filling process.
  • Pro Filler Trays
  • The Pro Filler Trays separates and holds individual capsules in place while filling.
  • With a three-step orientation process, the Pro-Filler can hold 300 capsules at a time with a 2.5% fill volume variance and easy to separate the capsule bodies from the tops for a smooth production process.
Delivery and support

Lead time depends on the manufacturer and the configuration, so we confirm it with your quote. Delivery, installation, operator training and calibration can all be included, and we will price them separately so you can see what each part costs.

Tell us the country you need it delivered to and we will quote transport and any documentation your institution requires.
