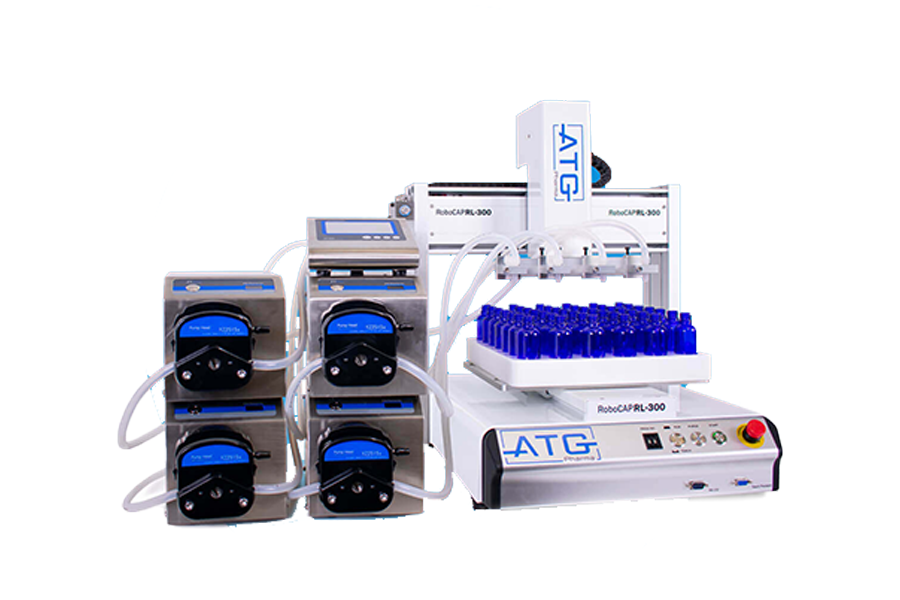

RoboCAP RL-300 Bottle Filling Machine

Bottle Filling Machine Components
Peristaltic Pump

This peristaltic system uses a positive displacement pump to squeeze the silicon product tubing and drawing product through the dispensing nozzles.
The contactless pumping action allows for quick and easy cleaning – simply change the tubing and you’re done.

Nozzle Tip Options

A choice of nozzle tips between 1mm and 2mm allows your production to have a completely customized solution that is ideal for your product.
Both nozzle tips are used with the dispensing needle valves, with the 1mm nozzle tip best used for capsule filling and the 2mm tip best suits gummy filling or larger volume fills such as cream containers, small bottles, etc.

Custom Trays

Custom molded trays specific to your own product are created in-house for a perfect fit on the RoboCAP. Clients will receive three trays for each size or type of product container, eliminating operators downtime and ensuring production is the most efficient.

Specifications
Fill Rate (Per Hour)*: 1,200 – 3,000
Weight (kg): 30
Width (mm): 485
Height (mm): 590
Depth (mm): 500
Power Supply: AC 110 – 220V 300W
Dispense Accuracy: +/- 2.5%
Dispensable Volume Range: 10ml – 1L
*Based on 30 ml Bottle
