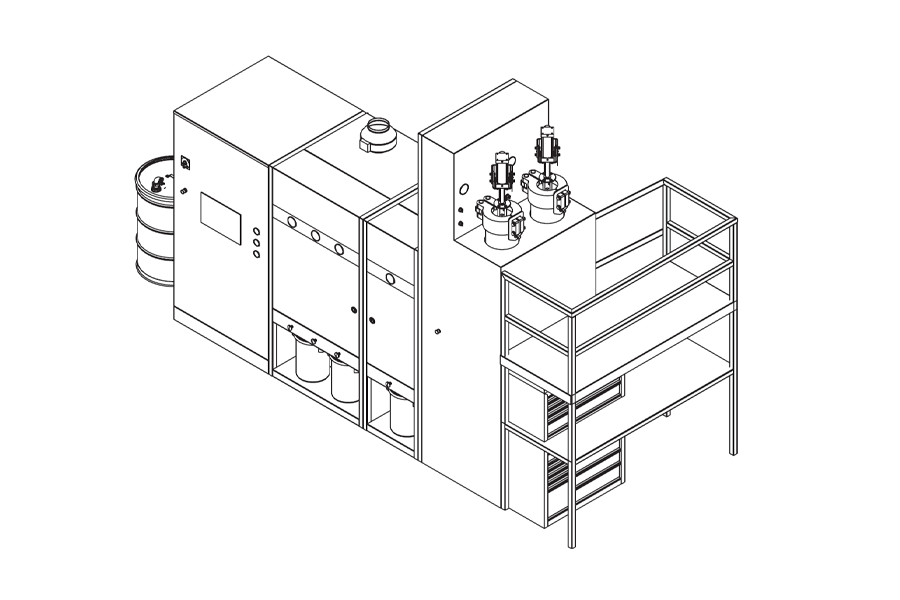

Polaramax™ Legend – CO2 & Multi-Solvent Extraction Systems

Extraction
Vessel volume: 2 x 100 L or 2 x 200 L
Liquid CO2 pump: Up to 22 kg/minute
Integrated multi-solvent system
Temperature range: 10–150°F (-12–65°C)
Pressure range (standard configuration):
MAWP: 2,200 psi (151 bar)
Operating pressure: 500–2,000 psi (35–137 bar)
Pressure range (high-pressure upgrade):
MAWP: 5,000 psi (345 bar)
Operating pressure: 500–4,800 psi (35–331 bar)
Separation & Collection
Continuous CO2 purification
Pressure range: 300–720 psi (21–50 bar)
Temperature range: 40–100°F (4.4–38°C)
Dedicated terpene collection
Separate collection lines for each extraction vessel
CO2 Recovery & Storage
Closed-loop CO2
CO2 condenser
CO2 remediation filters
Control Panel
Multiple user levels
Real-time monitoring
Remote diagnostics / remote connectivity**
Live batch recording
Continuous Operation
Continuous cyclone separation*
Dual extractor configurations
Specifications
Weight: 7,915 lbs (3,590 kg)*
Footprint (LxWxH): 252” x 124” x 157” (6.4m x 3.15m x 4m)*
