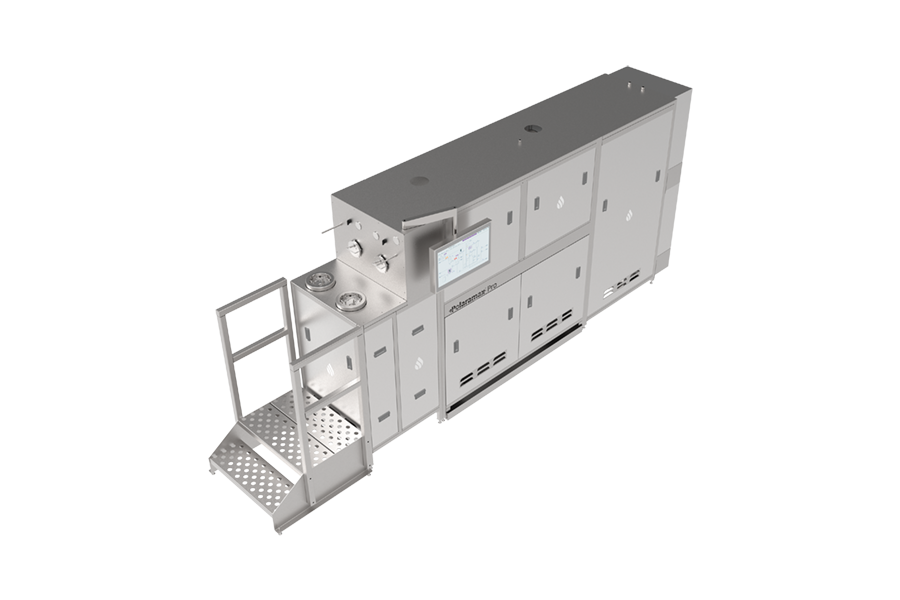

Polaramax™ Pro – CO2 & Multi-Solvent Extraction Systems

Extraction
Vessel volume: 10 L / 20 L combinations
Total extraction vessel volume: Up to 40 L*
Liquid CO2 pump: Up to 3 kg/minute
Integrated multi-solvent system
Temperature range: 10–150°F (-12–65°C)
Pressure range (standard configuration):
MAWP: 2,200 psi (151 bar)
Operating pressure: 500–2,000 psi (35–137 bar)
Pressure range (high-pressure upgrade):
MAWP: 5,000 psi (345 bar)
Operating pressure: 500–4,800 psi (35–331 bar)
Separation & Collection
Continuous CO2 purification
Cyclonic separation
Pressure range: 300–720 psi (21–50 bar)
Temperature range: 40–100°F (4.4–38°C)
Dedicated terpene collection
CO2 Recovery & Storage
Closed-loop CO2
CO2 condenser
CO2 remediation filters
