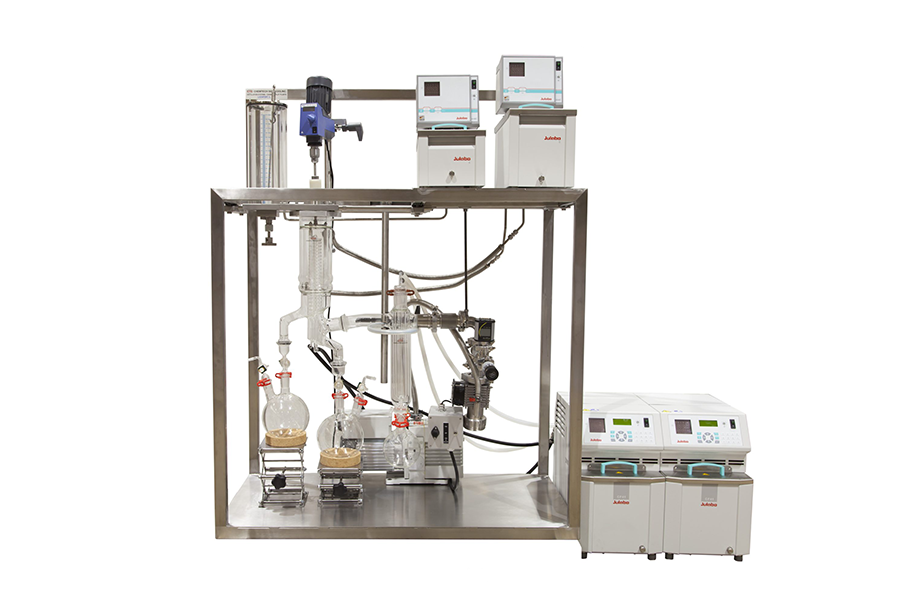

Mini-5 – Industrial Distilling Equipment

Support Frame System

304ss Bench Frame
Dimensions: 63″L 30″W 54″H
​
Feed System

2 Liter Hot Oil Heated Feed Tank
Gear Pump Feed Metering System
Heated Evaporator Support Plate
Evaporator

Borosilicate Glass
0.060 Sq. Meter Surface Area
Estimated Process Rate 1.50 Liter/hour*
Circulators

Feed Circulator 2kw; 20-250°c
Evaporator Circulator 3kw; 0-250°c
Condenser Circulator 2kw Heat/500w Cool; -50-200°c
Optional Cold Trap Circulator 2kw Heat/500w Cool; -50-200°c
Sample Collection

1 Liter Flask
6-Position Carousels Optional
Vacuum System

Cryowell Cold Trap
Backing Rotary Vane Pump 8 M3/hour
Turbomolecular Pump 90 L/sec
Miscellaneous

No Electrical Control Cabinet
Installation and Training Included
GMP Compliance Documentation Available
