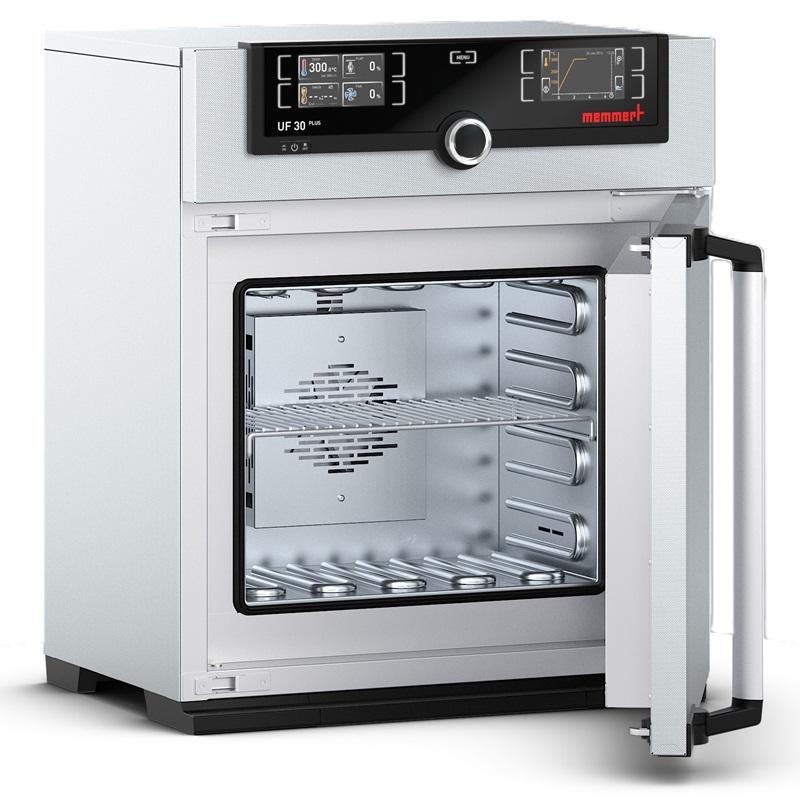

Memmert Universal Oven UF30plus
Digital microprocessor control with 2 TFT display
- Operating temperature
- 5-10°C above ambient temperature up to +300 °C
- Temperature accuracy
- up to 99.9 ° C: 0.1 / from 100 ° C: 0.5
- Temperature range adjustment
- +20 to +300 ° C
- Temperature sensor
- 1 Pt100 sensor DIN class A in 4-wire-circuit
We reply to quote requests within one working day.
- Supplied through our manufacturer partnerships
- Installation, training and calibration on request
Overview
What this Memmert GmbH + Co. KG unit gives you, taken from the manufacturer data we hold on file.
- Twin display
- Calibration at + 160 ° C
- Made of zinc coated stainless steel
- Forced air circulation ventilation from a quiet air turbine
- AtmoCONTROL software
- Self-diagnostic system
- Insulated stainless steel door with 2 locking points
Specifications
| Operating temperature | 5-10°C above ambient temperature up to +300 °C |
|---|---|
| Temperature accuracy | up to 99.9 ° C: 0.1 / from 100 ° C: 0.5 |
| Temperature range adjustment | +20 to +300 ° C |
| Temperature sensor | 1 Pt100 sensor DIN class A in 4-wire-circuit |
| Oven volume | 32 L |
| Number of shelves | 1 shelf electrified stainless steel |
| Maximum number of shelves | 3 |
| Maximum mass of material in the oven | 60 kg |
| Maximum mass of material on the shelf | 20 kg |
| Internal dimensions | 585 x 704 x 434 mm |
| Timer | 1 min to 99 days |
| Power supply | 230 V; 1600 W |
| Manufacturer | Memmert GmbH + Co. KG |
| Part number | UF30PLUS |
Figures come from the manufacturer. Ask us if you need a value confirmed for your application.
Delivery and support
Lead time depends on the manufacturer and the configuration, so we confirm it with your quote. Delivery, installation, operator training and calibration can all be included, and we will price them separately so you can see what each part costs.
Tell us the country you need it delivered to and we will quote transport and any documentation your institution requires.
