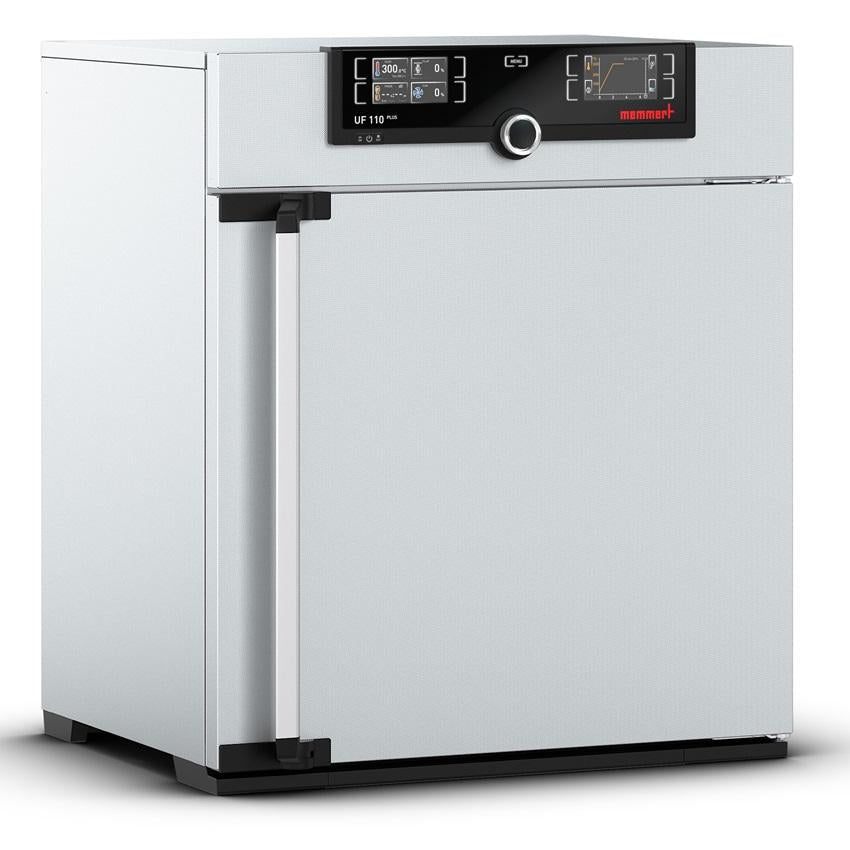

Memmert Universal Oven UF110plus
Digital microprocessor control with TwinDisplay
- Operating temperature
- 5-10 °C above ambient temperature up to +300 °C
- Temperature accuracy
- up to 99.9 °C: 0.1 / from 100 °C: 0.5
- Temperature range setting
- +20 to +300 °C
- Temperature sensor
- 1 Pt100 sensor DIN class A in 4-wire-circuit
We reply to quote requests within one working day.
- Supplied through our manufacturer partnerships
- Installation, training and calibration on request
Overview
What this Memmert GmbH + Co. KG unit gives you, taken from the manufacturer data we hold on file.
- Calibration at +160°C
- Made of zinc-coated stainless steel
- Forced Air Ventilation with FAN
- AtmoCONTROL software
- Autodiagnostic system Insulated stainless steel door with 2 locking points
- 3 years warranty card
Specifications
| Operating temperature | 5-10 °C above ambient temperature up to +300 °C |
|---|---|
| Temperature accuracy | up to 99.9 °C: 0.1 / from 100 °C: 0.5 |
| Temperature range setting | +20 to +300 °C |
| Temperature sensor | 1 Pt100 sensor DIN class A in 4-wire-circuit |
| Oven volume | 108 L |
| Number of shelves | 1 electropolished stainless steel shelf |
| Maximum number of shelves | 5 |
| Maximum load of material in the oven | 175 kg |
| Maximum load of material per shelf | 20 kg |
| Internal dimensions | 560 x 480 x 400 mm |
| Timer | 1 min to 99 days |
| Power supply | 230 V; 1600 W |
| Manufacturer | Memmert GmbH + Co. KG |
| Part number | UF110PLUS |
Figures come from the manufacturer. Ask us if you need a value confirmed for your application.
Delivery and support
Lead time depends on the manufacturer and the configuration, so we confirm it with your quote. Delivery, installation, operator training and calibration can all be included, and we will price them separately so you can see what each part costs.
Tell us the country you need it delivered to and we will quote transport and any documentation your institution requires.
