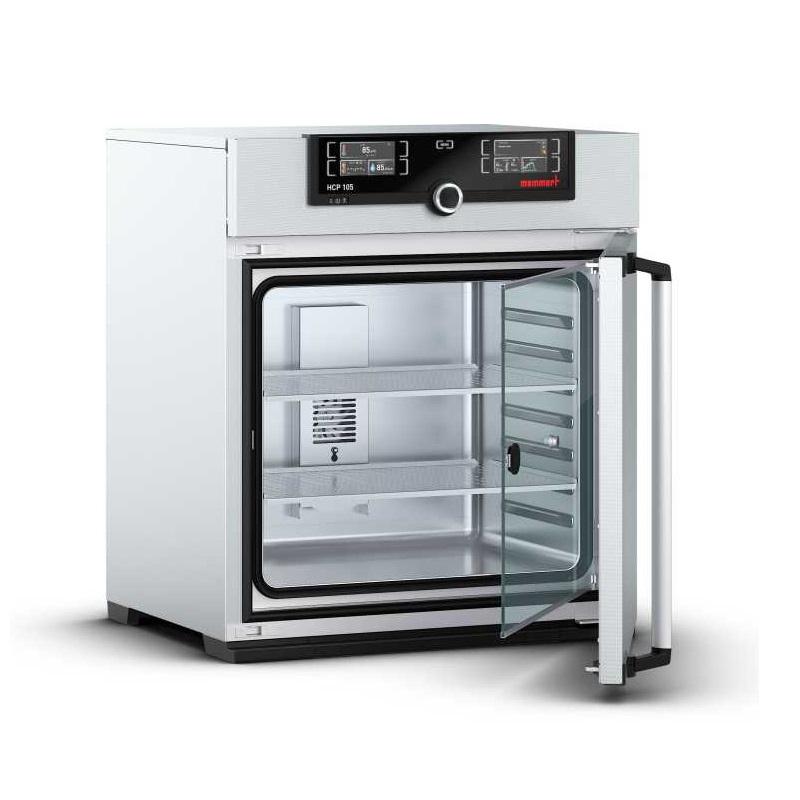

Memmert Humidity Chamber HCP105

Part no: HCP105

Operating temperature range +7 above ambient temperature up to +90 °C

  • Setting temperature range from +18 to +90 °C
  • Temperature setting accuracy 0.1 °C
See the full description
Price on request Quoted per configuration and delivery country

We reply to quote requests within one working day.

  • Supplied through our manufacturer partnerships
  • Installation, training and calibration on request
Overview

What this Memmert GmbH + Co. KG unit gives you, taken from the manufacturer data we hold on file.

  • Setting temperature range from +18 to +90 °C
  • Temperature setting accuracy 0.1 °C
  • Temperature sensor 2 sensors Pt100 DIN Class A in a 4-wire circuit for mutual monitoring,
  • assuming functions in case of error
  • Humidity control
  • The setting range is active
  • humidity control
  • 20 to 95 % rh and rh-Off
  • Humidity setting accuracy 0.5 % rh
  • 6-sided heating concept, multifunctional heating system with a large area of
  • four sides with additional heating on the door and back to avoid condensation
  • Internal Dimensions w(A) x h(B) x d(C): 560 x 480 x 400 mm (d less 35 mm for fan)
  • Interior W.-St. 1.4301 (ASTM 304)
  • Volume 107 L
  • Max. number of internal shelves 6
  • Max. chamber filling 90 kg
  • Max. loading per internal 15 k
  • External Dimensions w(D) x h(E) x d(F): 719 x 850 x 591 mm (d +56 mm door handle)
  • Voltage
  • Electrical load 230 V, 50/60 Hz approx. 1520 C
  • Net weight approximately 75 kg
  • Carton with a gross weight of approximately 100 kg
Delivery and support

Lead time depends on the manufacturer and the configuration, so we confirm it with your quote. Delivery, installation, operator training and calibration can all be included, and we will price them separately so you can see what each part costs.

Tell us the country you need it delivered to and we will quote transport and any documentation your institution requires.
