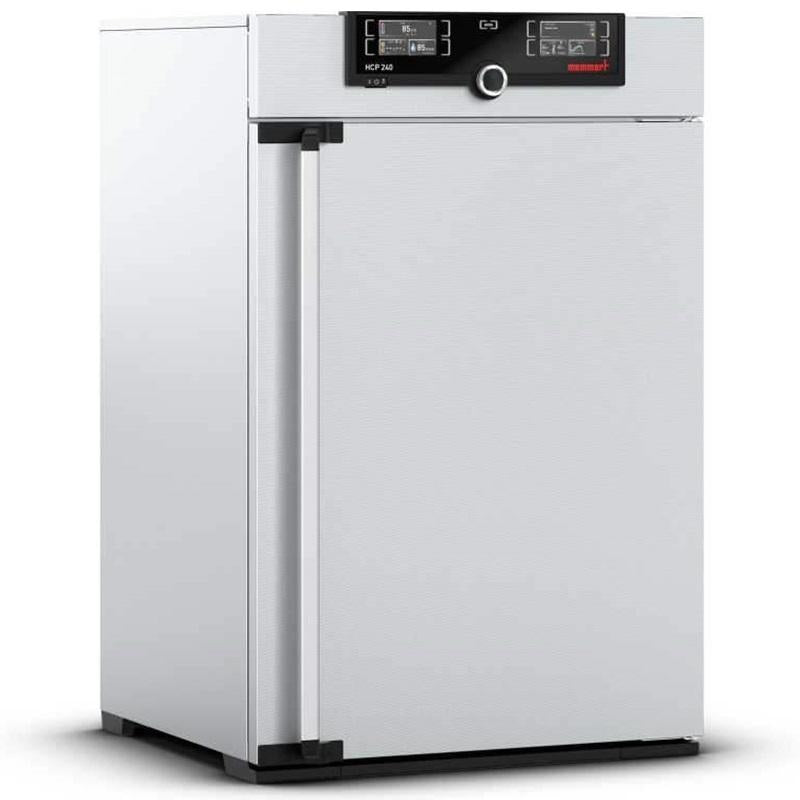

Memmert Humidity Chamber HCP 240
Tap to enlarge
Memmert GmbH + Co. KG

Memmert Humidity Chamber HCP 240

Part no: HCP240

Operating temperature range +7 above ambient temperature up to +90 °C

  • Setting temperature range from +18 to +90 °C
  • Temperature setting accuracy 0.1 °C
See the full description
Price on request Quoted per configuration and delivery country

We reply to quote requests within one working day.

  • Supplied through our manufacturer partnerships
  • Installation, training and calibration on request
Overview

What this Memmert GmbH + Co. KG unit gives you, taken from the manufacturer data we hold on file.

  • Setting temperature range from +18 to +90 °C
  • Temperature setting accuracy 0.1 °C
  • Temperature sensor 2 sensors Pt100 DIN Class A in a 4-wire circuit for mutual monitoring,
  • assuming functions in case of error
  • Humidity control
  • The setting range is active
  • humidity control
  • 20 to 95 % rh and rh-Off
  • Humidity setting accuracy 0.5 % rh
  • 6-sided heating concept, multifunctional heating system with a large area of
  • four sides with additional heating on the door and back to avoid
  • condensation
  • Internal Dimensions w(A) x h(B) x d(C): 600 x 810 x 500 mm (d less 35 mm for fan)
  • Interior W.-St. 1.4301 (ASTM 304)
  • Volume 241 L
  • Max. number of internal affairs 12
  • Max. chamber filling 140 kg
  • Max. loading per internal 15 kg
  • External Dimensions w(D) x h(E) x d(F): 759 x 1180 x 691 mm (d +56 mm door handle)
  • Voltage
  • Electrical load 230 V, 50/60 Hz approx. 1520 C
  • Ambient temperature from 10 °C to 30 °C
  • Net weight approx 110 kg
  • Carton with a gross weight of approximately 145 kg
  • Warranty 3 years
Delivery and support

Lead time depends on the manufacturer and the configuration, so we confirm it with your quote. Delivery, installation, operator training and calibration can all be included, and we will price them separately so you can see what each part costs.

Tell us the country you need it delivered to and we will quote transport and any documentation your institution requires.
