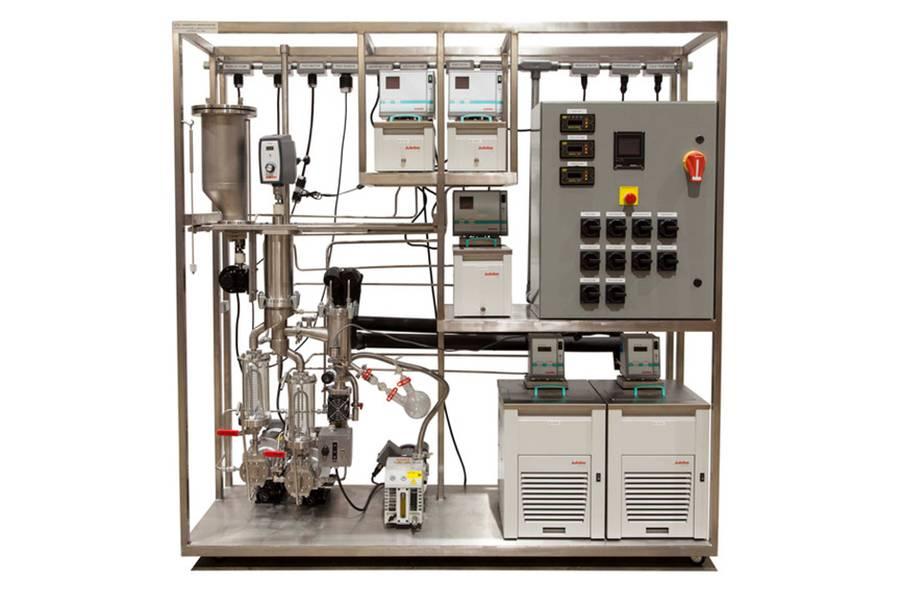

KDT-6 – Short Path Distillation Unit

Support Frame System

304ss Frame
Dimensions: 75″L 28″W 76″H
​
Feed System

2 Liter Hot Oil Heated Feed Tank
Gear Pump Feed Metering System
Heated Evaporator Support Plate
​Evaporator

316 Stainless Steel
0.060 Sq. Meter Surface Area
Estimated Feed Rate 3.0 Liter/hour*
Circulators

Feed Circulator 2kw; 20-250°c
Evaporator Circulator 3kw; 0-250°c
Residue Circulator 2kw; 20-250°c
Condenser Circulator 2kw Heat/500w Cool; -50-200°c
Cold Trap Circulator 2kw Heat/500w Cool; -50-200°c
​Sample Collection

6-Position Carousels
Hot Oil Heated Gear Pumps Optional
Vacuum System

Backing Rotary Vane Pump 8 M3/hour
Turbomolecular Pump 90 L/sec
Control System

UL 508 Rated Electrical Control Cabinet
PLC System Optional
​​Miscellaneous

Installation and Training Included
PSI Reviewed
GMP Compliance Documentation Available
