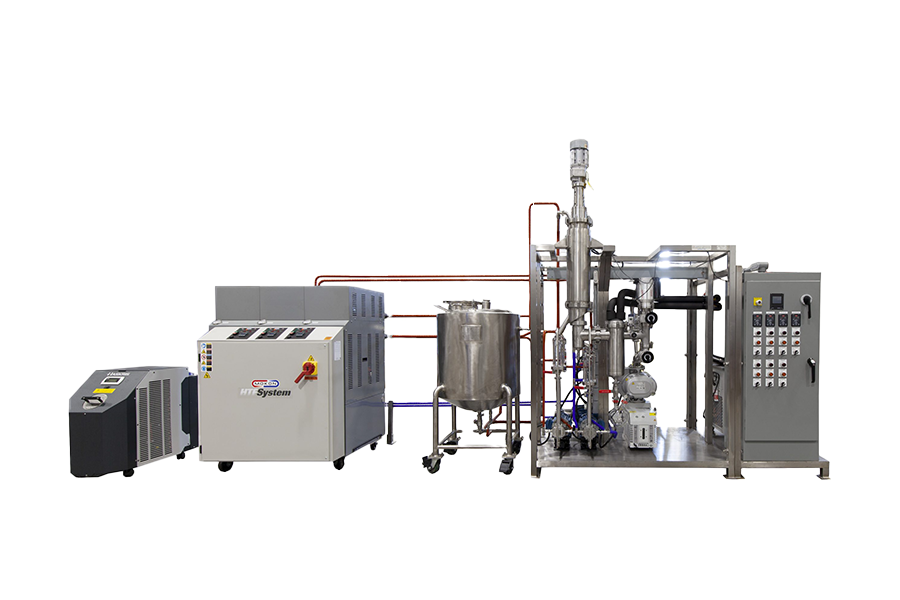

KD-30 – Short Path Distillation Unit

Support Frame System

304ss Frame
Dimensions: 165″L 54″W 112″H
Feed System

200 Liter Hot Oil Heated Feed Tank
Gear Pump Feed Metering System
Hot Oil Traced Feed Line
Evaporator

316 Stainless Steel
0.30 Sq. Meter Surface Area
Estimated Process Rate 20.00 liter/hour*
Circulators

Feed Circulator 12kW; 25-250°C
Evaporator Circulator 24kW; 25-250°C
Residue Circulator 12 kW; 25-250°
Condenser Circulator 6kW Heat/9.6kW Cool; 0-120°C
Cold Trap Circulator 0.6kW Cool; -75 to -30°C
Sample Collection

Hot Oil Heated Gear Pumps
2L Cold Trap Receiving Flask
Vacuum System

Backing Rotary Vane Pump 65 M3/hour
Roots Blower
Turbomolecular Pump 350 L/sec​​​
Control System

UL 508 Rated Electrical Control Cabinet
PLC System Optional
Miscellaneous

Installation and Training Included
GMP Compliance Documentation Available
