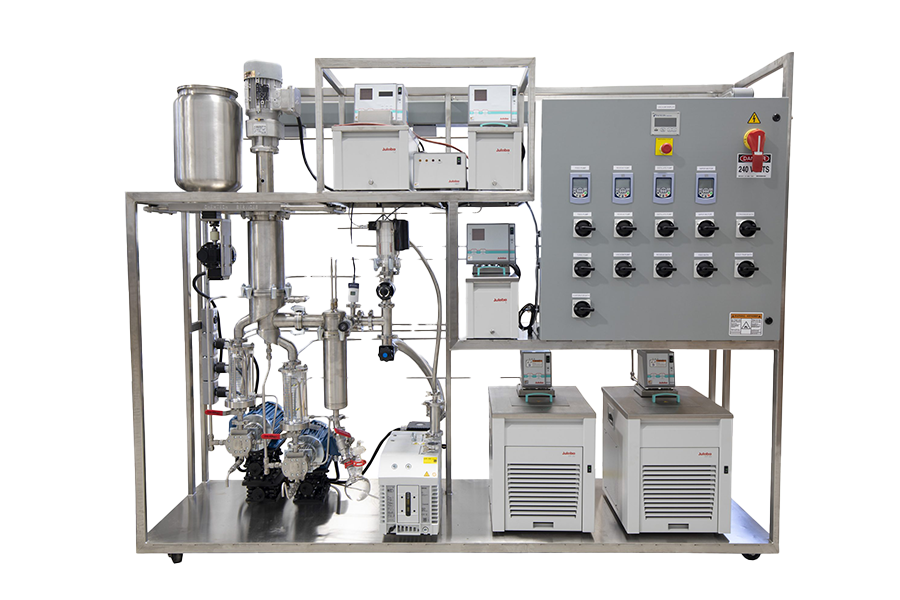

KD-10 – Short Path Distillation Unit

Support Frame System

304ss Frame
Dimensions: 100″L 32″W 83″H
Feed System

25 Liter Hot Oil Heated Feed Tank
Gear Pump Feed Metering System
Heated Evaporator Support Plate
Evaporator
316 Stainless Steel
0.100 Sq. Meter Surface Area
Estimated Process Rate 7 Liter/hour*
Circulators

Feed Circulator 3kw; 0-250°c
Evaporator Circulator 9kw; 20-300°c
Residue Circulator 3kw; 0-250°c
Condenser Circulator 2kw Heat/500w Cool; -50-200°c
Cold Trap Circulator 2kw Heat/500w Cool; -50-200°c
Sample Collection

Hot Oil Heated Gear Pumps
1L Cold Trap Receiving Flask
Vacuum System

Backing Rotary Vane Pump 40 M3/hour
Turbomolecular Pump 90 L/sec​
Control System

UL 508 Rated Electrical Control Cabinet
PLC System Optional
Miscellaneous

Installation and Training Included
GMP Compliance Documentation Available
